DIY project: Ultralight pot gripper

After reading forum threads on pot grippers I decided to get my old MSR gripper out, and start thinking about how to make it lighter without loosing stability. The original version weighs about 45 grams (1,6 oz). The Trangia version is 48 grams (1,7 oz). A new MRS gripper, the Litelifter™ weighs 28 grams (1 oz) according to their website.

Improvement of the old MSR gripper: I started with filing off the rivets that holds the two pieces together. Then I filed off unnecessary material around the edges of each piece, and mad the holes larger where the stress would be lower. I was careful at the front of the gripper, near the axle, where the stress is high when a heavy pot is lifted or tilted. The advantage of using a file for the holes is that you can shape them in any way you like to optimize the strength to weight ratio. I also shortened the gripper from about 125 mm (4,9 in) to 112 mm (4,4 in). The rivets where replaced with a small screw and nut.

After a few sessions with filing and testing I got the weight down to 31 grams (). I could not notice any problems, even with heavier loads. I started to suspect that the design is very over-dimensioned, at least for use with smaller pots.

New pot gripper prototype: Next step is to build a new gripper from scratch in a thinner material. The original's material thickness was 2 millimeters (0,08 in). I chose a 1 millimeter (0,04 in) sheet of aluminium/aluminum for the new version. I also made the new version a little shorter and narrower. The new length: 105 mm (4,1 in). The length can be shortened more or less depending on how the gripper is used. I eat from my pot, and hold it with the gripper during a meal (or while it's still hot), so I need a good comfortable length.

The width of the handle of the old MSR gripper was 24 mm (0,9 in) and the the new version is 18 millimeters (0,7 in) wide (not including side supports at the front).

The material I used came from the tube from an old vacuum cleaner. I cut off two pieces of tube (120 mm / 4,7 in each). Then I shaped the two pieces with a vise, some pliers, and a hammer. The details and holes where done with files and drill bits. After some work I had pieces looking like this:


The parts after some cutting, shaping, drilling, and filing. Weight: 18 grams (0,6 oz).

After even more drilling, filing and testing, the gripper looks like this:

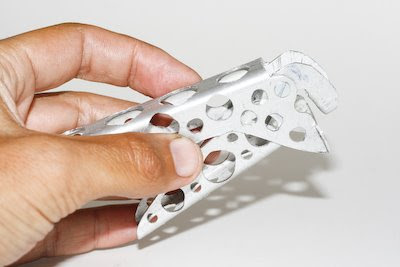

The new ligher pot gripper prototype. Weight: 16 grams (0,56 oz).

Result: The new pot gripper weighs 16 grams (0,56 oz), and is very stable for both lifting a full pot, and tilting it (to pour contents). It's also comfortable to hold a pot while eating from it. I did not notice any problems for pots from 1-2 liters, even when full to the rim. It may be too weak for larger loads, but I have no pots to test with, and no need for that kind of strength.

Conclusions: The traditional Trangia and MSR pot grippers are over-dimensioned and too heavy. The clever design will be strong enough with thinner material, at least for use with smaller pots. It would be interesting to try this design with even thinner material in titanium.

Vanliga tamojer är överdimensionerade

Efter att ha läst intressanta forumtrådar om tamojer (de där handtagen som man greppar kastruller med ute i vildmarken) bestämde jag mig för att plocka fram min MSR-tamoj och fundera på förbättringar. Den ursprungliga versionen (som följde med MSR:s kokkärl tidigare) väger ca 45 gram. Trangias väger tydligen 48 gram. En ny MRS-variant (Litelifter™) väger 28 gram enligt deras egen hemsida.

Förbättring av befintlig MSR-tamoj: Jag började med att fila bort nitarna som håller ihop de två delarna och började sedan fila upp hålen i respektive del där det verkade vara onödigt mycket material. Jag filade också bort en del av profilens höjd eftersom delarna upplevdes som extremt styva. Försiktigare var jag längst fram där man greppar kastrullen där krafterna bör vara som störst. Fördelen med att fila upp hålen i stället för att bara borra är att man kan forma hålen så att viktbesparingen blir optimal. Nitarna ersatte jag med en liten tunn skruv med tillhörande mutter.

Efter några omgångar av filande och testande hamnade MSR-tamojen på 31 gram, och funktionen var så gott som opåverkad även med tungkastrull. Jag började misstänka att kontruktionen är kraftigt överdimentionerad. Åtminstone för mindre kastruller/mindre vikt.

Ny tamojprototyp: Nästa steg blev att bygga en helt ny tamoj från scratch i en tunnare godstjocklek. En mätning visade att MSR-tamojen var tillverkad av 2-millimeters aluminiumplåt. Jag gissade på att en millimetersplåt skulle kunna räcka. Det vore i alla fall spännande att se hur en sådan skulle fungera. Jag passade också på att korta ned designen och göra den smalare.

MSR-tamojen var ca 120-130 mm lång från början. Jag kortade den sedan till 112 mm (överdelen). Underdelen kortades ännu mer. Den nya blev 105 mm lång, men kan säkert kortas ytterligare beroende på hur man använder sin tamoj (att hålla en full kastrull för att äta ur den kräver en viss längd för att göra det bekvämt).

Bredden på MSR-tamojen är 24 mm, exklusive stödvingarna längst fram. Den nya lättviktstamojen blir 18 mm bred.

Som material använde jag röret från en gammal skrotad dammsugare. Godstjockleken var 1 mm och känns stabilt. Det räckte att kapa av 2 gånger 12 centimeter av röret, klippa upp det och börja forma med skruvstäd, tänger och hammare. Sedan var det dags för finlir och borrande. Efter en del arbete såg delarna ut så här:


De två plåtämnena har fått form och flera hål för att få ned vikten. Vikt: ca 18 gram.

Efter ännu mer filande och borrande ser det nu ut så här:


Ihopmonterad och måttligt lättad tamojprototyp. Vikt: 16 gram.

Resultat: Den nya tamojen väger 16 gram, och är så gott som lika stabil som MSR-tamojen i höjd- och sidled (med 1-2 liter). Funkar utmärkt att hålla i kastrullen då man äter en stor måltid ur den, eller då man häller vätska ur en full kastrull. Det kan hända att den blir vinglig/vek vid stora kastruller (3 liter eller mer). Jag har ingen kastrull att testa med nu.

Slutsats: De vanliga tamojerna är överdimensionerade. Åtminstone för de mindre kastrullerna. Det vore intressant att testa denna design (eller liknande) med ännu tunnare plåt i titan. Det skulle inte förvåna mig om man kan få till en stabil titan-tamoj som väger under tio gram.
